Cisco Umbrella

Connect Cisco Umbrella so SecureAI can detect which corporate sources are resolving LLM/AI domains, using Umbrella’s Reporting API v2. Umbrella is a DNS-layer source: it confirms that a device resolved an AI domain (not the full TLS payload), which is exactly what shadow-AI discovery needs. SecureAI runs two passes for maximum coverage:
  1. A curated list of known LLM/AI domains.
  2. Umbrella’s content category 212 (“Generative AI”), so newly popular AI services are caught even before they’re in the curated list.

​
Prerequisites

  • An Umbrella package that includes the Reporting API and DNS activity logs.
  • Umbrella API credentials (API key + secret) and your Organization ID.

​
Credentials

​
Where to get them

  1. Sign in to the Umbrella dashboard.

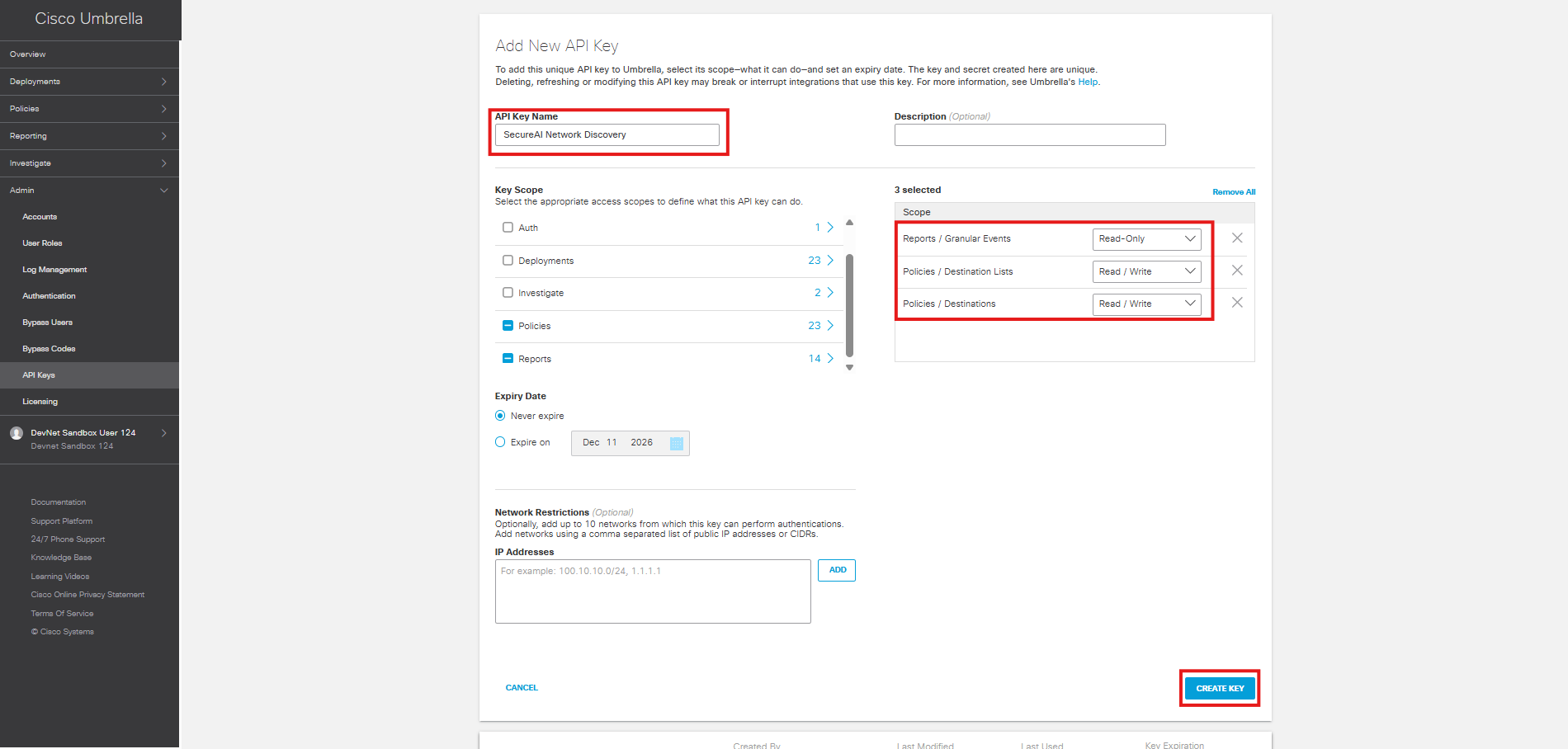

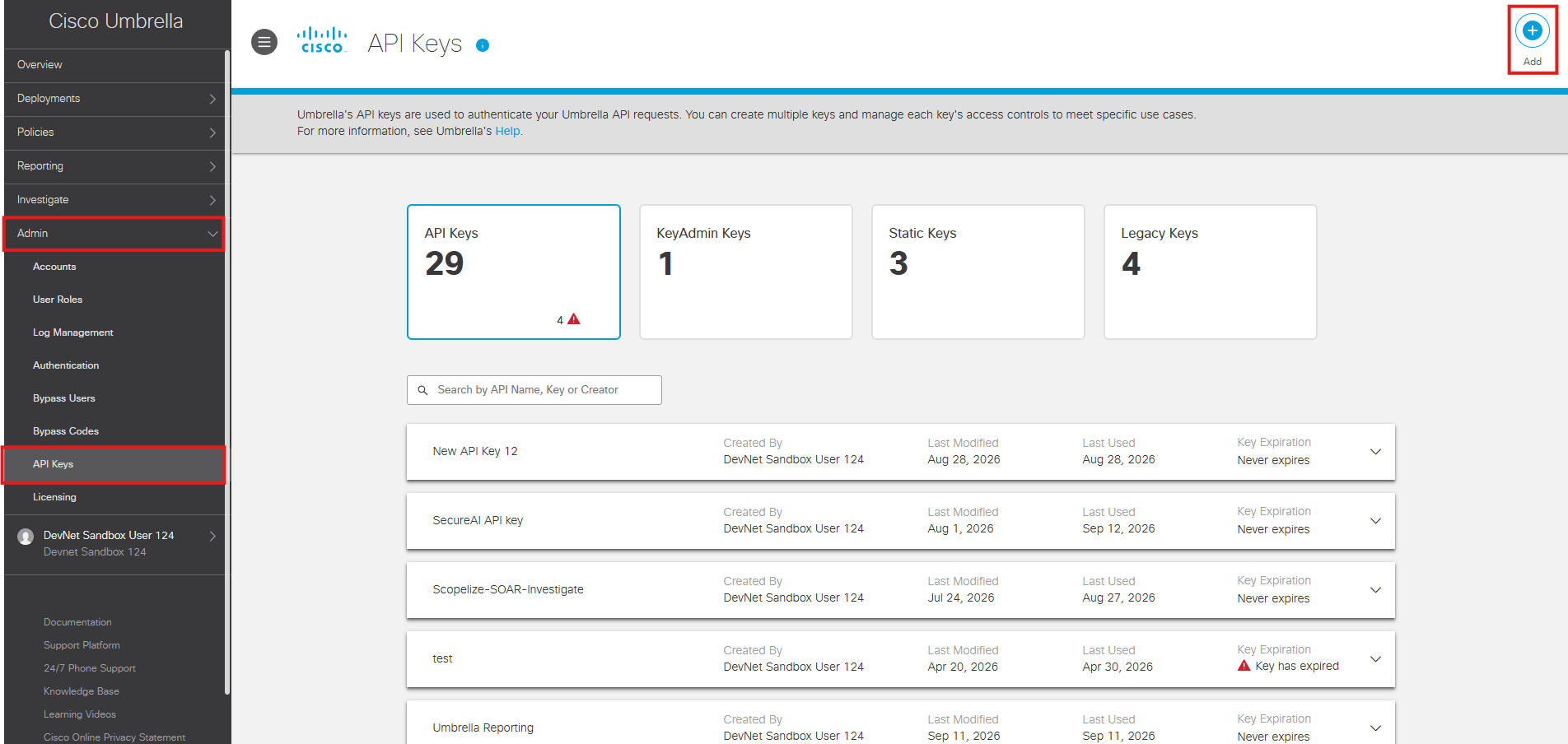

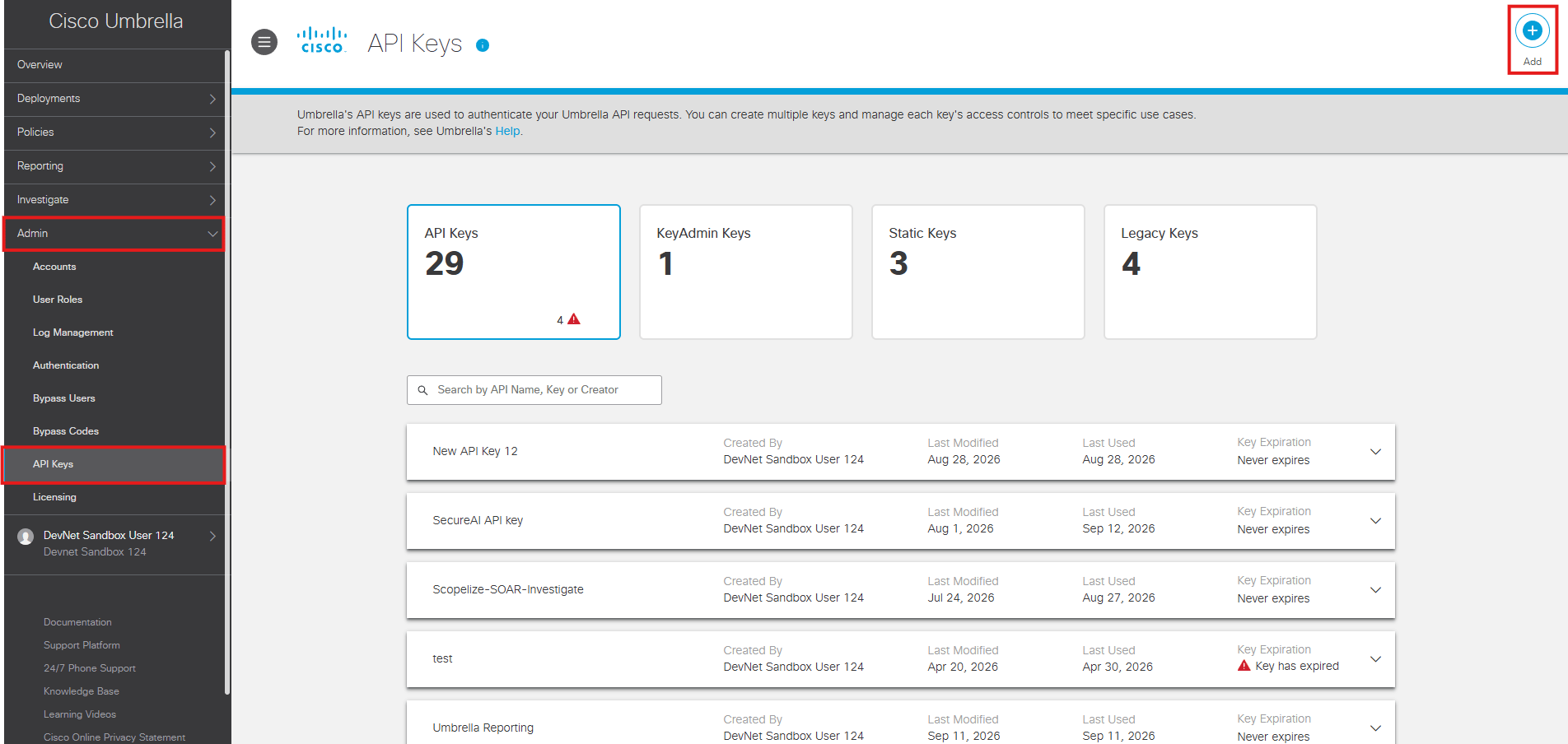

  2. Go to Admin → API Keys and create a key with Reporting scope. Copy the key and secret (shown once).

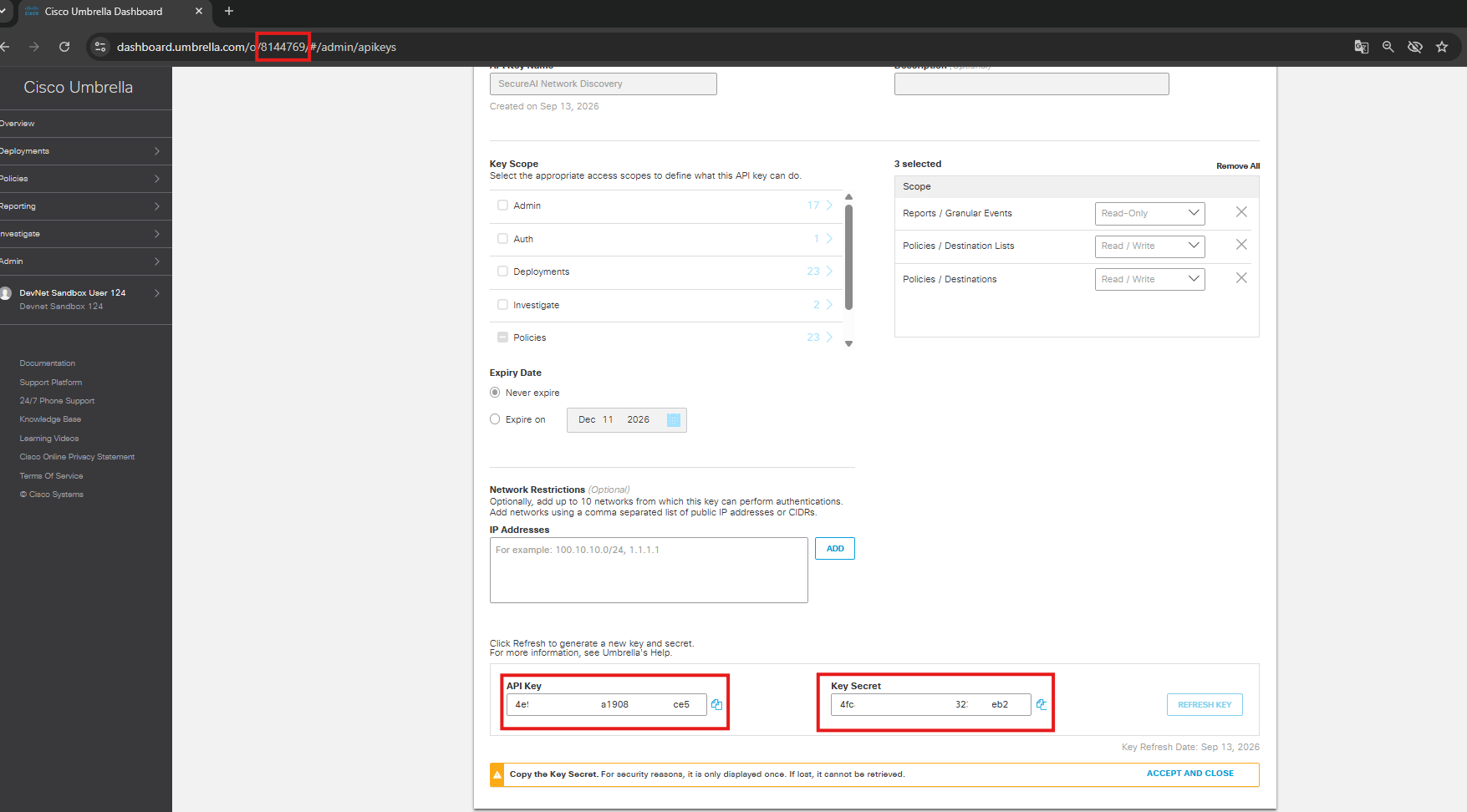

  3. Your Organization ID is the numeric id in the dashboard URL (.../o/<orgId>/#/...).
SecureAI authenticates with POST https://api.umbrella.com/auth/v2/token (Basic apiKey:apiSecret, client_credentials) and reads GET /reports/v2/activity/dns.

​
Connect

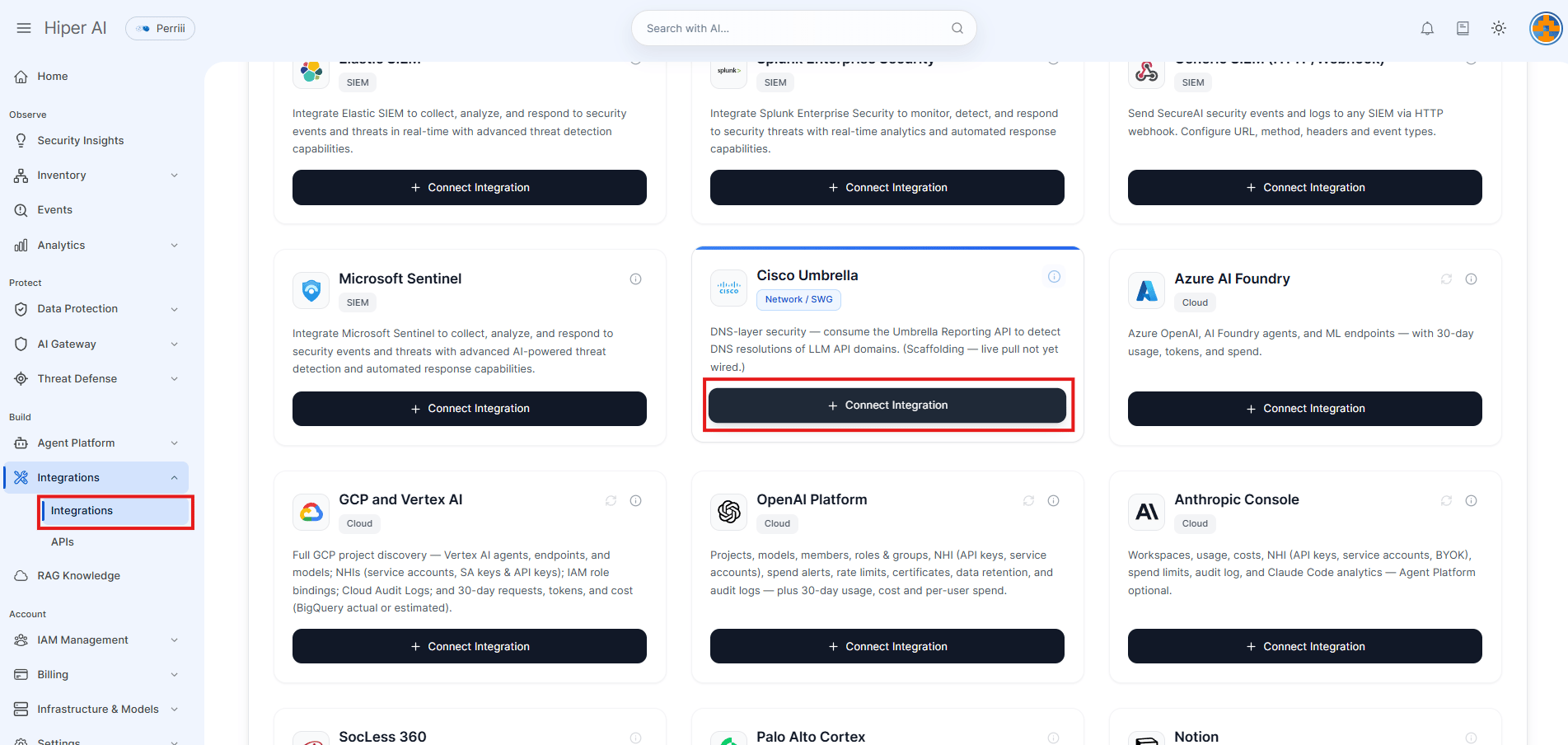

  1. Admin → Integrations → Network → Cisco Umbrella → Connect.
  2. Enter the API key, secret, and Organization ID.
  3. Test, then Save.
  4. Sync — the first sync backfills recent DNS activity in the background.

​
Notes

  • Umbrella is DNS-layer: a match confirms domain resolution, not a completed API call. It is ideal for breadth (every device behind Umbrella) but does not carry request payloads.
  • If Umbrella egress must go through a proxy, set UMBRELLA_PROXY_URL (or the standard HTTPS_PROXY) on the SecureAI backend.

​
Verify

After the first sync, open Network Sources — sources that resolved AI domains appear with their provider(s), call counts, and severity.
